PA-01
Power Amplifier

From the design to the choice of materials to the configuration the PA-01 is reduced to the maximum in every respect.

The Poweramplifier "PA-01" is available in two high-quality surface finishes: anodized silver and anodized black.

Design Details

Design

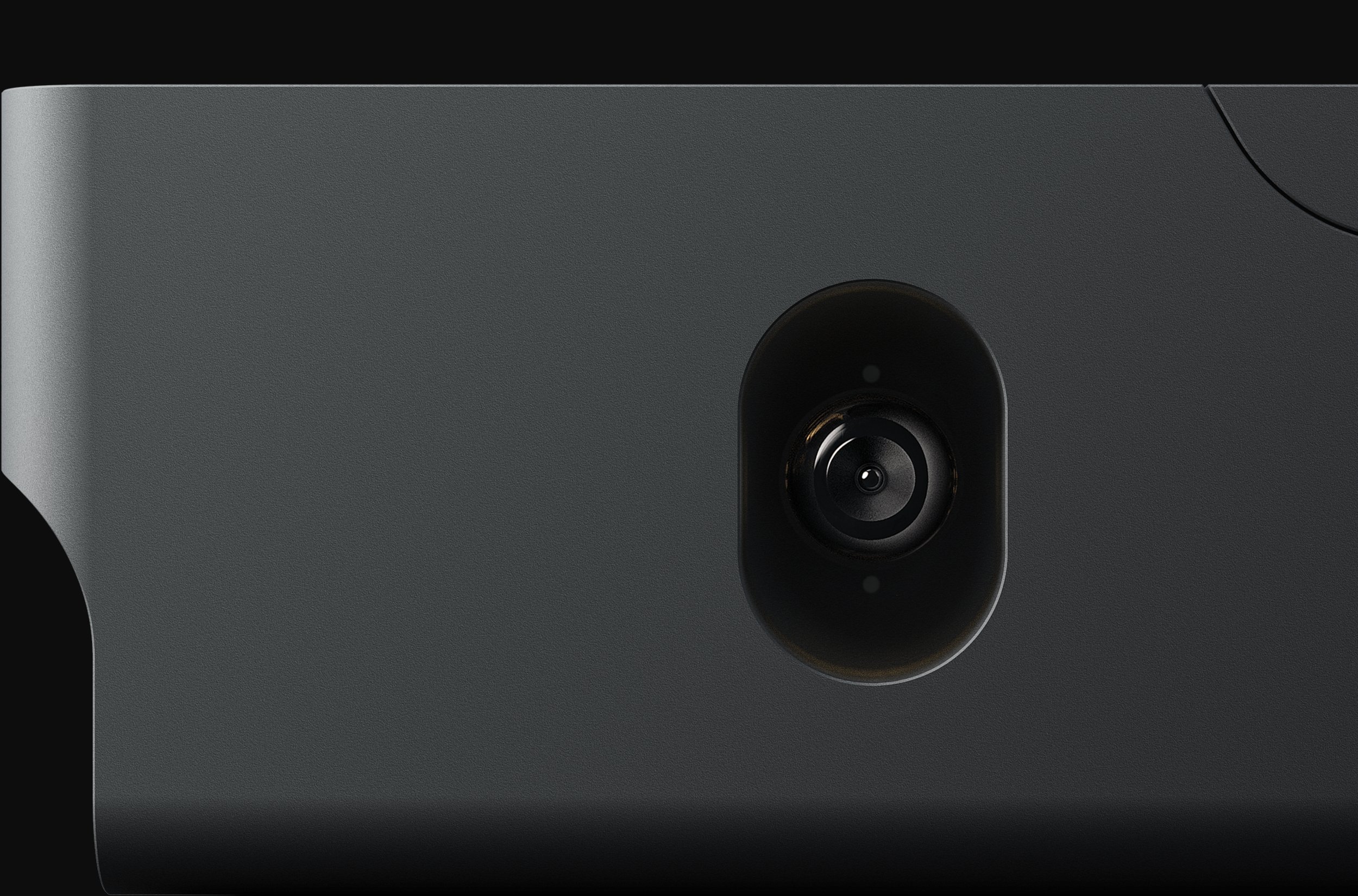

• Extremely sturdy enclosure, CNC-milled from a solid block of aluminium

• All surfaces are glass-bead-blasted and then anodized with a highly resistive ceramic coating

• Power supplies mounted on suspended sub-chassis to mechanically isolate them from the audio circuits

• Extremely reduced circuit design with parts chosen in extensive listening tests

Components

• Parts are manually channel-matched to close tolerances and hand-soldered point to point

• Oversized choke-regulated power supplies and custom made power transformers

• Internal wiring with cryogenically treated oxygen free copper

• Customized Lundahl C-core output transformers

Usability

• Intuitive handling, no adjustments required

• The PA-01 can be switched ON/OFF automatically from the Pre-Amp → turn on/off the whole system with one switch

• Gentle operating conditions ensure long tube life

• Widely used, reliable tube types to ensure future availability without expert knowledge

• Impedance matching for 4, 8 Ohm speakers, 16 Ohm option on request

Technical Specifications

Design: Single ended pure class A, 2 x 10 Watt

Mode: Triode connected, no feedback

Input Impedance: 470 KOhms

Output Impedance: 4/8 Ohms or 8/16 Ohms option

Tubes: 2 x KT150
2 x 12AX7 / ECC83

Power Consumption: 180W in operation, no stand-by

Dimensions: 480 (width) x 360 (depth) x 113 (height incl. feet) mm

Weight: 49 lbs (22.2 kg)

 Pricing

Sales Price Switzerland (incl. 8.1% VAT)
